FUSE ISOLATOR SWITCH HR17 FUSE DISCONNECTOR SWITCH
- Contact: John . Carol
- Telephone: +86-577-62652185
- whatsapp: +8613819768195
- E-mail: hanmo@hanmoel.com
DATA SHEET:
|
MODEL |
HR17 |
|
POLES |
3P |
|
STANDARD |
IEC60269 |
|
RATED INSULATED VOLTAGE(Ui) |
690V |
|
RATED WORKING VOLTAGE(Ue) |
380V |
|
RATED CURRENT(A) |
40A 100A 160A 250A 400A 630A |
|
USED TYPE |
AC-23B |
|
CERTIFICATE |
CE |

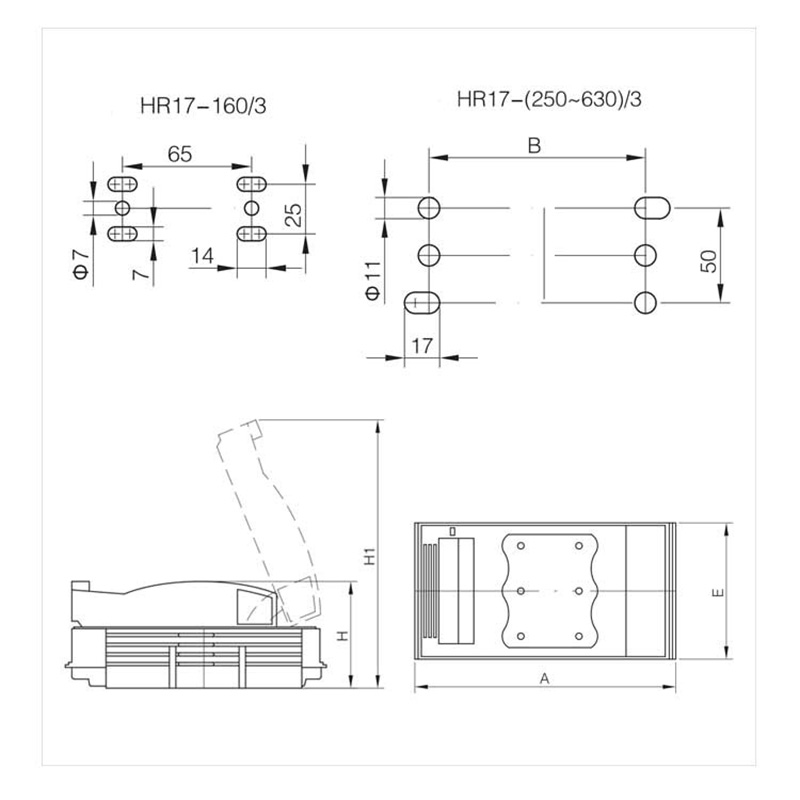

DIMENSION(mm):
|
TYPE |
A |
B |
D |
E |
H |
|
HR17-40 |
116 |
76 |
76 |
150 |
42 |
|
HR17-100 |
116 |
105 |
76 |
150 |
62 |
|
HR17-160 |
202 |
106 |
83 |
208 |
65 |
|
HR17-250 |
240 |
184 |
115 |
290 |
114 |
|
HR17-400 |
288 |
210 |
126 |
335 |
130 |
|
HR17-630 |
300 |
250 |
135 |
350 |
162 |
