PCT QUICK CONNECT TERMINALS 223B SERIES
- Contact: John . Carol
- Telephone: +86-577-62652185
- whatsapp: +8613819768195
- E-mail: hanmo@hanmoel.com
PRODUCT MANUAL:
PC engineering plastic shell, UL 94V-0 flame retardant grade; stainless steel shrapnel, high conductivity copper and steel
plate connection terminal; suitable for single strand and multiple strand conductors.
|

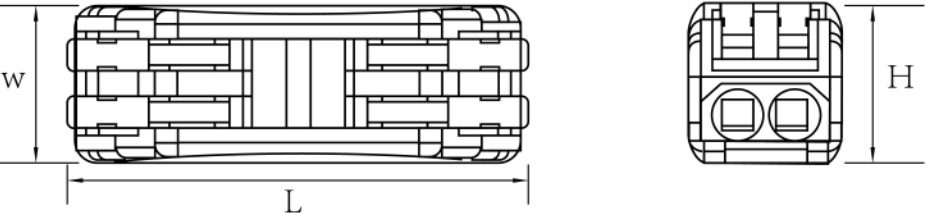

Model |
Digits |
Amp |
Volt |
L |
W |
H |
Wire Range |
|
MM |
|||||||
|
223-1p |
1 |
32A |
600V |
39.4 |
9.1 |
14.7 |
0.2-4.0mm2 |
|
223-2p |
2 |
32A |
600V |
39.8 |
13.5 |
14.3 |
0.08-4.0mm2 |
|
223-3p |
3 |
32A |
600V |
39.8 |
18.6 |
14.7 |
0.08-4.0mm2 |
|
223-4p |
4 |
32A |
600V |
41.6 |
23.7 |
14.9 |
0.08-4.0mm2 |
|
223-5P |
5 |
32A |
600V |
41.6 |
28.7 |
14.9 |
0.08-4.0mm2 |
|
223-6P |
6 |
32A |
600V |
41.6 |
33.6 |
14.9 |
0.08-4.0mm2 |
|
223-8p |
8 |
32A |
600V |
41.6 |
43.5 |
14.9 |
0.08-4.0mm2 |
|
223-12p |
12 |
32A |
600V |
41.6 |
63.7 |
14.9 |
0.08-4.0mm2 |
