AC ISOLATOR SWITCH LW28 ROTARY SWITCH
- Contact: John . Carol
- Telephone: +86-577-62652185
- whatsapp: +8613819768195
- E-mail: hanmo@hanmoel.com
DATA SHEET:
|
MODEL |
LW28 |
|
POLES |
1P 2P 3P 4P |
|
STANDARD |
IEC60947 |
|
RATED OPERATIONAL VOLTAGE(V) |
220V~440V |
|
RATED CURRENT(A) |
16A-160A |
|
CERTIFICATE |
CE |

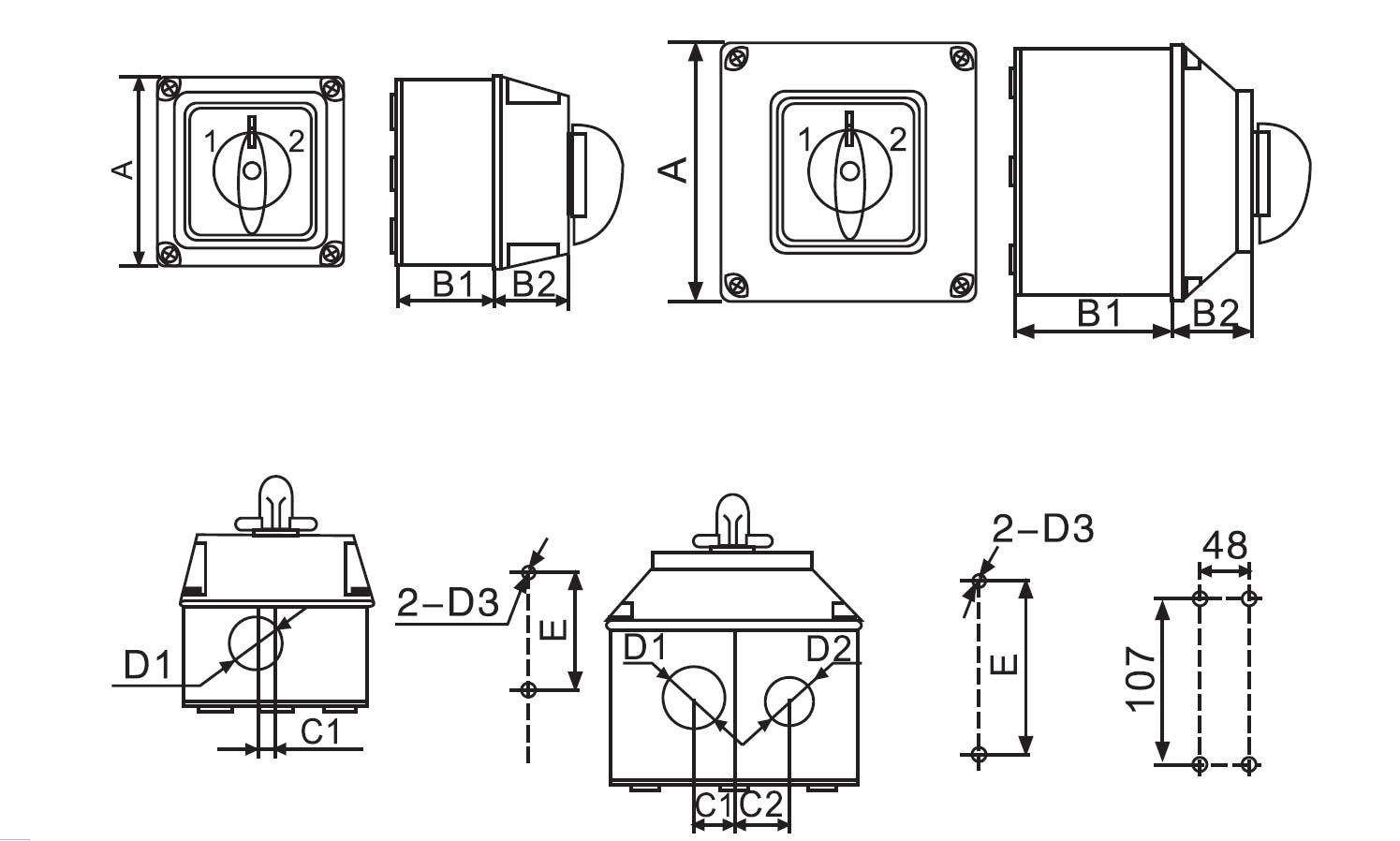

DIMENSION(mm):
|
TYPE |
A |
B1 |
B2 |
C1 |
C2 |
D1 |
D2 |
D3 |
E |
F |
|
LW28-20 |
68.5 |
35.5 |
25.5 |
6.5 |
|
Φ18 |
|
Φ5 |
44 |
|
|
LW28-20 |
68.5 |
45 |
25.5 |
6.5 |
|
Φ18 |
|
Φ5 |
44 |
|
|
LW28-20 |
68.5 |
35.5 |
32.5 |
6.5 |
|
Φ18 |
|
Φ5 |
44 |
|
|
LW28-20 |
68.5 |
45 |
32.5 |
6.5 |
|
Φ18 |
|
Φ5 |
44 |
|
|
LW28-25 |
68.5 |
35.5 |
25.5 |
6.5 |
|
Φ18 |
|
Φ5 |
44 |
|
|
LW28-25 |
68.5 |
45 |
25.5 |
6.5 |
|
Φ18 |
|
Φ5 |
44 |
|
|
LW28-25 |
68.5 |
35.5 |
32.5 |
6.5 |
|
Φ18 |
|
Φ5 |
44 |
|
|
LW28-25 |
68.5 |
45 |
32.5 |
6.5 |
|
Φ18 |
|
Φ5 |
44 |
|
|
LW28-32 |
113 |
70.5 |
35.5 |
18 |
23.5 |
Φ27 |
Φ21 |
Φ5 |
78 |
|
|
LW28-63 |
113 |
100.5 |
35.5 |
18 |
23.5 |
Φ27 |
Φ21 |
Φ5 |
78 |
|
|
LW28-125 |
148 |
92 |
45 |
22 |
25 |
Φ30 |
Φ21 |
Φ5 |
107 |
48 |
|
LW28-160 |
148 |
152 |
45 |
22 |
25 |
Φ30 |
Φ21 |
Φ5 |
107 |
48 |
